Digital Tap Sensor - V2

Digital Tap Sensor - V2

Tap Sensor - V2

Thicker traces, better wire placement, better machine settings for copper tape.

Process for copper traces transfer process. I didn't have contact paper so I used tape. I would recommend getting some contact paper. :p

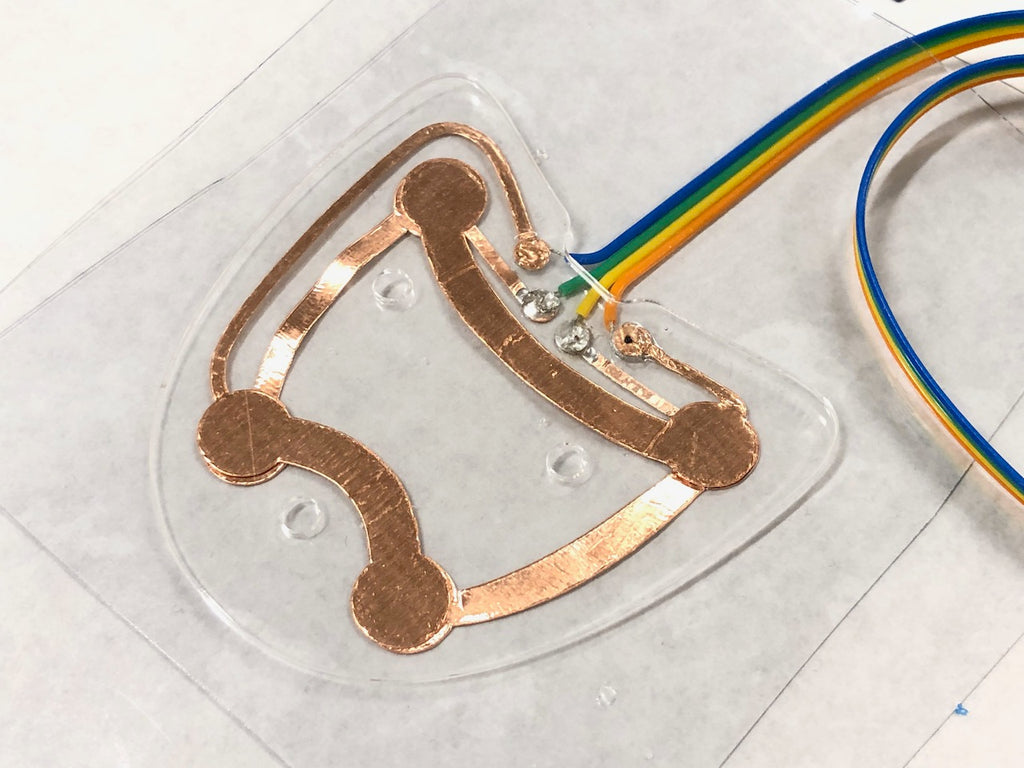

Soldering the wires:

Assembling the pieces:

  • Acrylic
  • Copper traces
  • Velostat
  • Copper Traces
  • Acrylic

Rear tap:

Adding the screws:

Cable management:
